Available in the below sizes;
10ft: 2,620 kg each - 1.2 m wide and come in lengths of 1.2 m
8ft: 2,500 kg each - 1.2 m wide and come in lengths of 1.2 m.
6ft: 2,275 kg each - 1.2 m wide and come in lengths of 1.2 m.

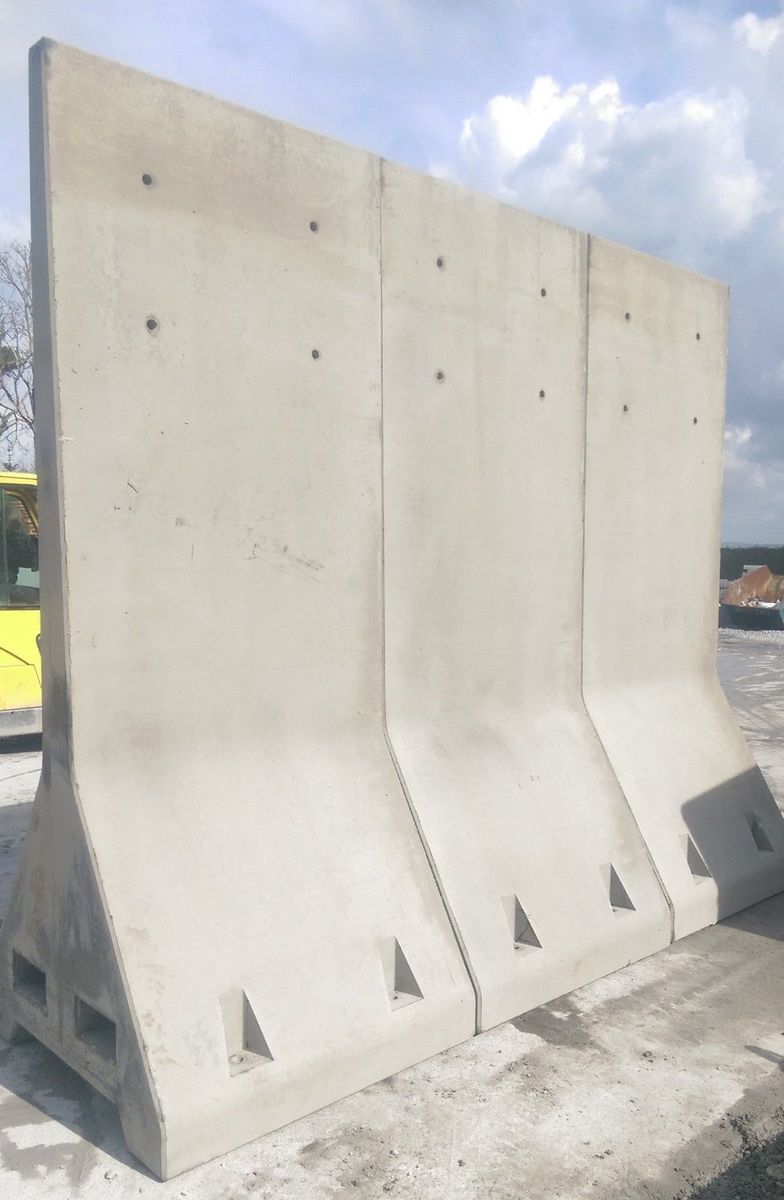

4m: 4,000 kg each - 1.2 m wide and come in lengths of 1.2 m. (4 Meter high A Shape Bunker/ Silage can store a significantly greater amount than 3 meter (10 Foot ) high A walls.)
Bases are not hollow leading to a heavier wall.
Perfect seal at the 90 degree corner joints.
They have bolt holes for fixing to a concrete surface - two on each side.
They incorporate holes for either top lifting or two for lifting using forks. They are easy to move using a 3 ton forklift.
There is a steel cage that is inserted into the moulds before the concrete is poured. The cage is tailored to suit the height of the wall so there is always steel running to within a few inches of the top of the wall.
Steel reinforcing bars are used.
For any further queries and to order and arrange delivery/collection, please call us on 0044(0)2889541305.
