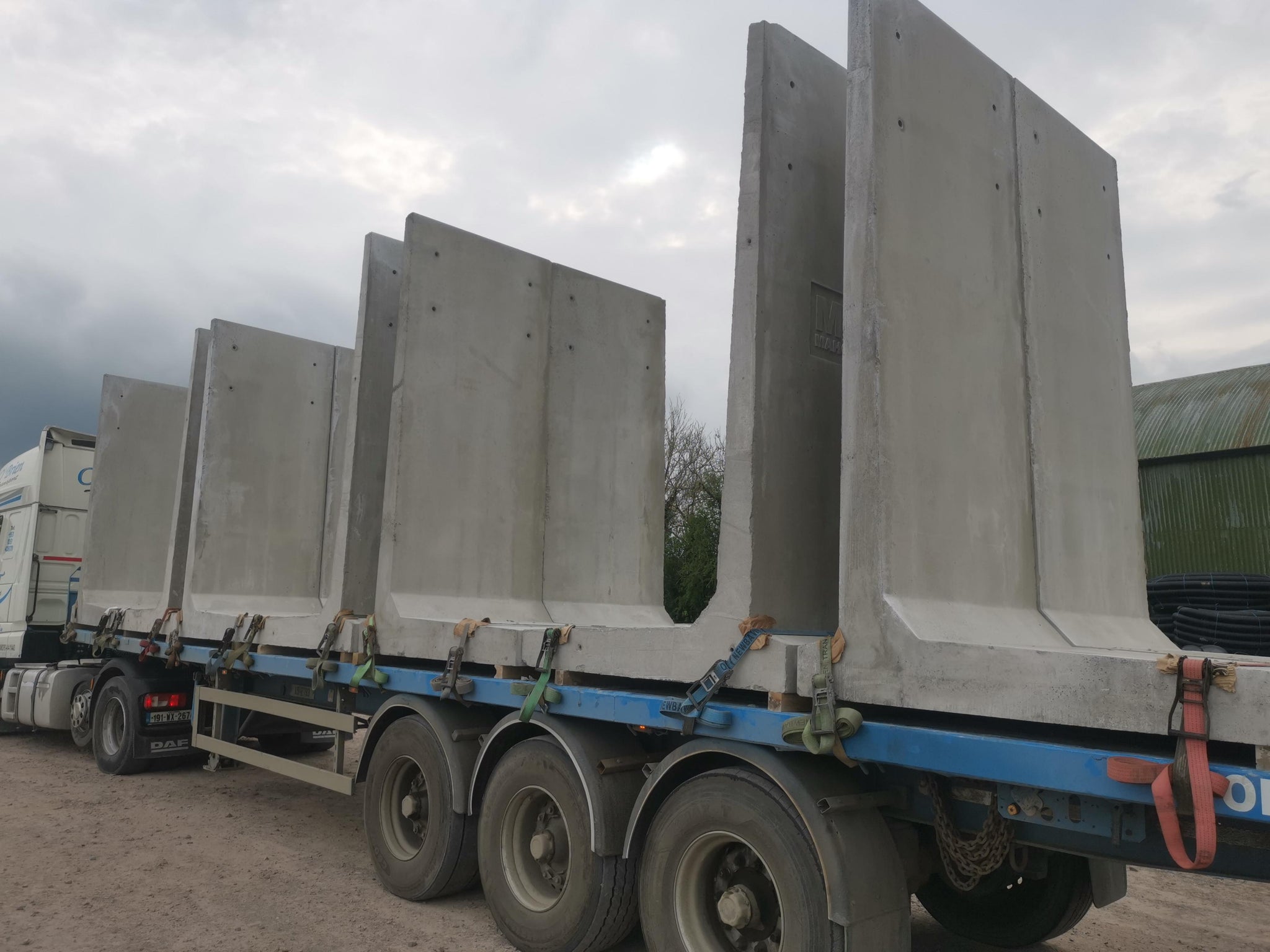

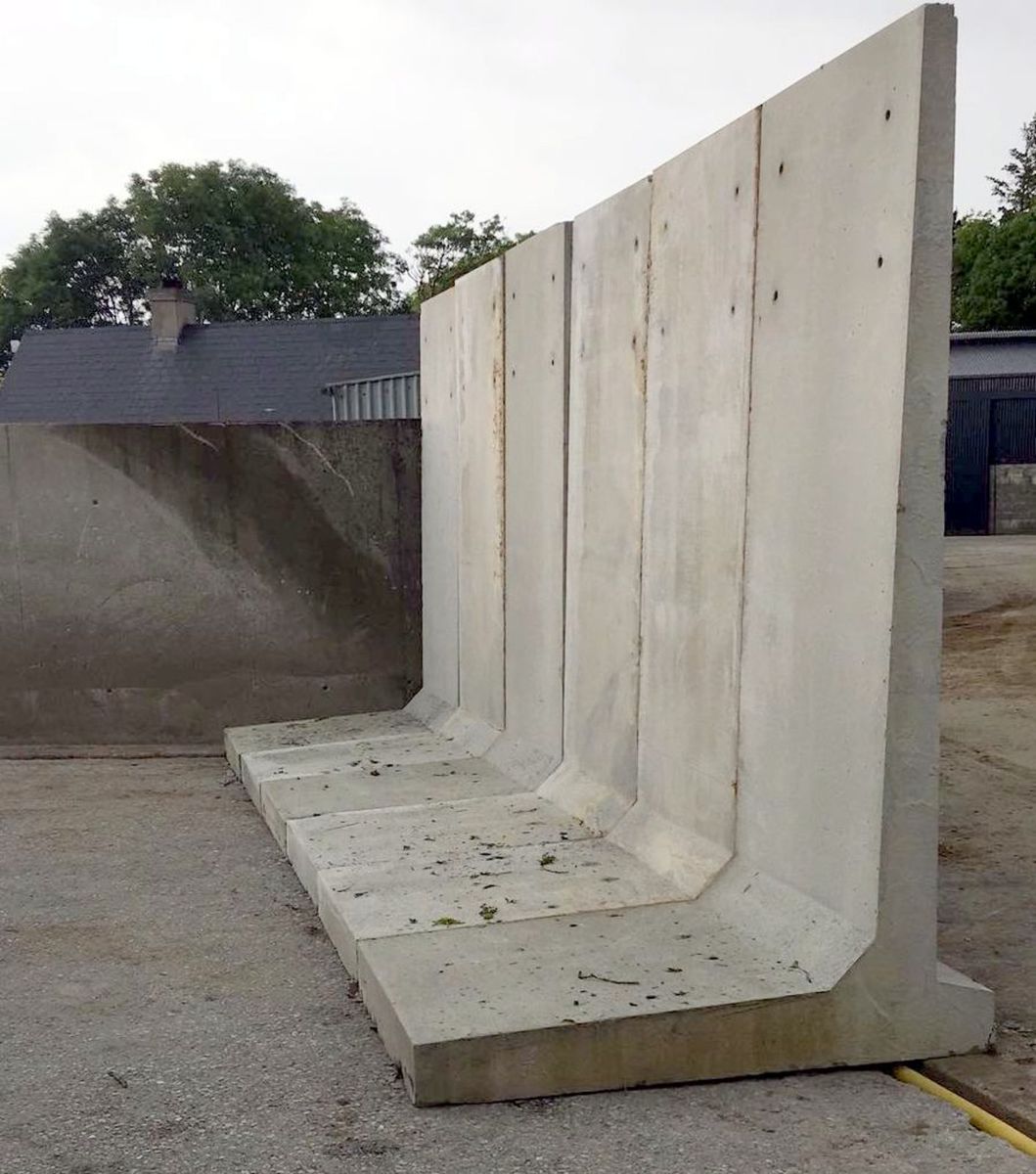

These concrete L Walls are manufactured to a higher specification than the A shape bunker walls with more steel. The reason is that the user is usually driving up on top of the legs with the wheels of the loader.
The walls are manufactured in 8 feet and 10 feet high and with / without the rear heel. All walls come in 4 foot section lengths. The bottom leg is 8 inches thick and is 5 feet 11 inches wide including the heel for the 8 and 10 foot high walls. ( 5 ft 3 inches wide excluding the heel ) 4 ft 8 inches from the edge of the leg to the face of the wall.
The 10 foot high wall weighs 2.5 tons each.
The 8 foot high wall weighs 2.2 tons each.
You will note that there are slots for lifting forks built into the base for ease of handling. There are also have bolt holes at the top of the wall face for handling using straps.
These concrete walls are reinforced with a 16 mm steel cage. The concrete is mixed in specialised batching plant ( never use ready mix ) and the concrete is impregnated with fibre mesh for further strength and durability.
The steel cages are tailored to suit the height of the wall so that there is always steel running to within a few inches of the top of the wall.
For any further queries and to order and arrange delivery/collection, please call us on 0044(0)2889541305.
